Brand Name : Shenzhen LED World
Model Number : LW-RI 10
Certification : CE,RoHS,FCC
Place of Origin : China
MOQ : 1 square meter
Price : Negotiation
Payment Terms : T/T, Western Union, MoneyGram
Supply Ability : 1,000 square meters per month
Delivery Time : 10-18 working days after received your payment
Packaging Details : Plywood cartons or Flight case package
Package mode : SMD3528
View distance : 3--100m
Power : 110V/220V± 15% 50Hz
Module size : 320mm*160mm
View angle(H/V) : ≥ 120/120degree
Module pixel(dots) : 32dots*16dots
Maintenance way : Rear access
Refresh frame frequency : 600Hz
indoor rental 640x640mm-P5,P10.pdf
10 mm pixel pitch rental led advertising display stage high contrast video panel
Features:
Why choose us:
Company:
Through the efforts and collaboration of all employees of the company, the products are exported to Europe, North America, Australia, the Middle East, and the establishment of a stable distribution agents in the respective regions.
usage: broadcast, live show, TV studio, conference, party and wedding ceremony, they are also used as advertising screen in shopping mall center, building street, highway and so on.
Parameter:
| Item Name | P10 full color indoor led display |
| Pitch size | 10mm |
| Module size | 320mm*160mm |
| Module pixel(dots) | 32dots*16dots |
| Pixel configuration | 1R1G1B |
| Package mode | SMD3528 |
| Color scale | 65536degree/16777216colors |
| Pixel density | 10000pixels/square meter |
| View angle(H/V) | ≥ 120/120degree |
| Brightness | ≥ 800cd/square meter |
| Brightness adjustment | 64 level automatic or manual |
| View distance | 3--100m |
| Power consumption | 100-1600W/square meter |
| Net weight | less than 45kg/square meter |
| Operating temperature | _ 25° C~+60° C |
| Operating humidity | 10%_ 95%RH |
| Life time | ≥ 100, 000hours |
| Out of control dot | ≤ 1/10, 000 |
| Whole Display Flatness | ≤ 1mm Juncture |
| Exchange frame speed | > 150frames per second |
| Refresh frame frequency | 600Hz |
| Power | 110V/220V± 15% 50Hz |
| Operating system | Windows98/Me/2000/Xp |
| Drive mode | constant current driving, 1/8 scan |
| Display mode | VGA640X480_ VGA1600X1024 |
| Protections for outdoor display | IP43 |
| Maintenance way | Rear access |
| Accepting signal | PAL/NTSC/SECAM, S-Video; VGA; RGB; Composite Video; SDI |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. | |
Product detail:

|
|

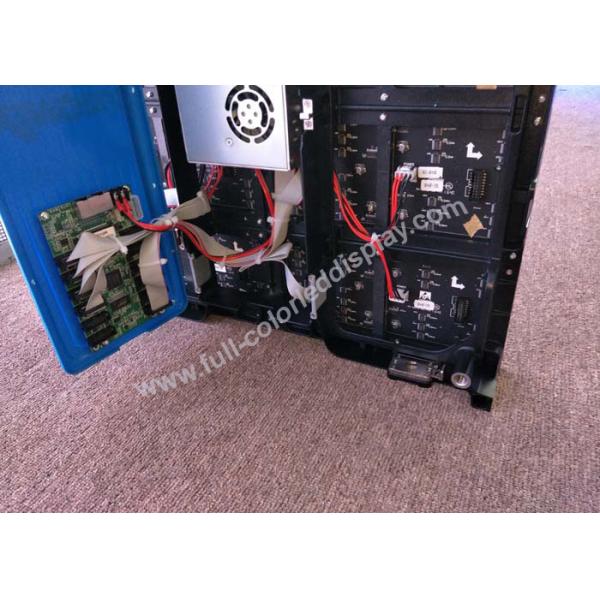

10 Mm Pixel Pitch LED Stage Display Without Fans Good Hot Dissipation Images |
